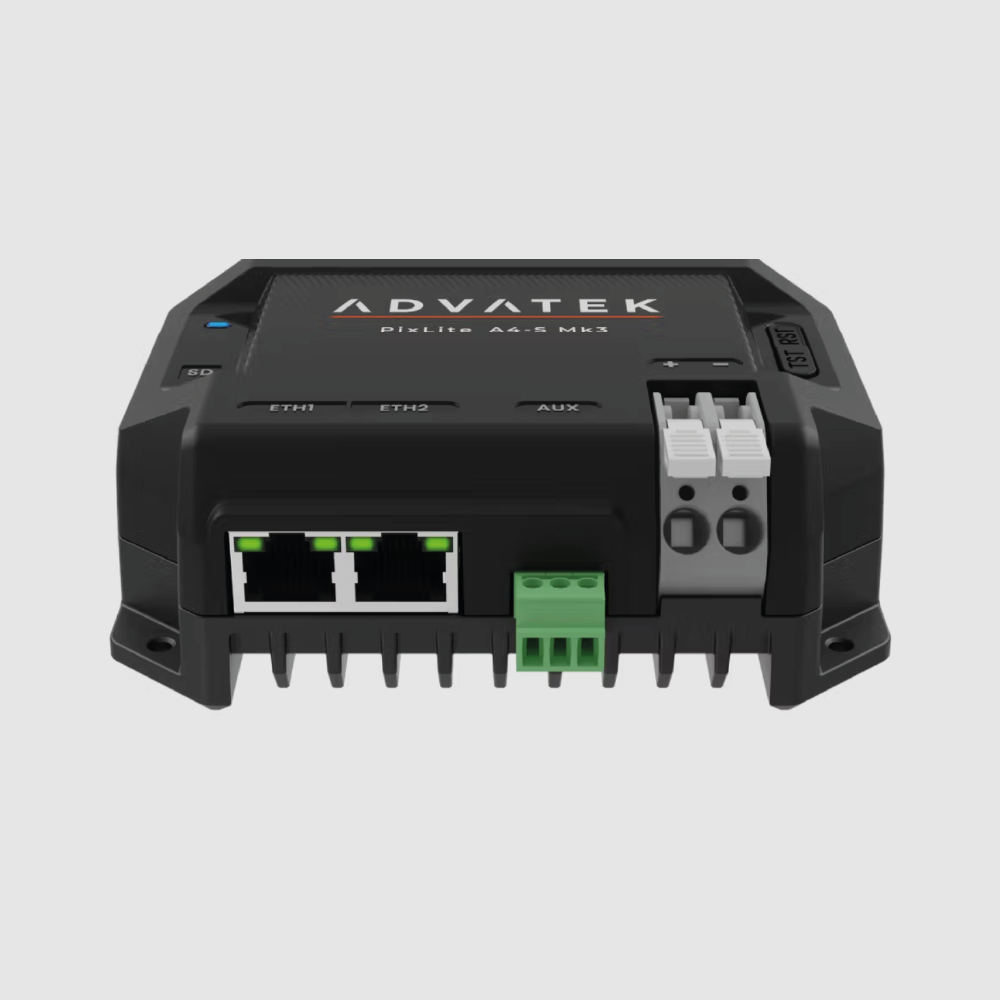

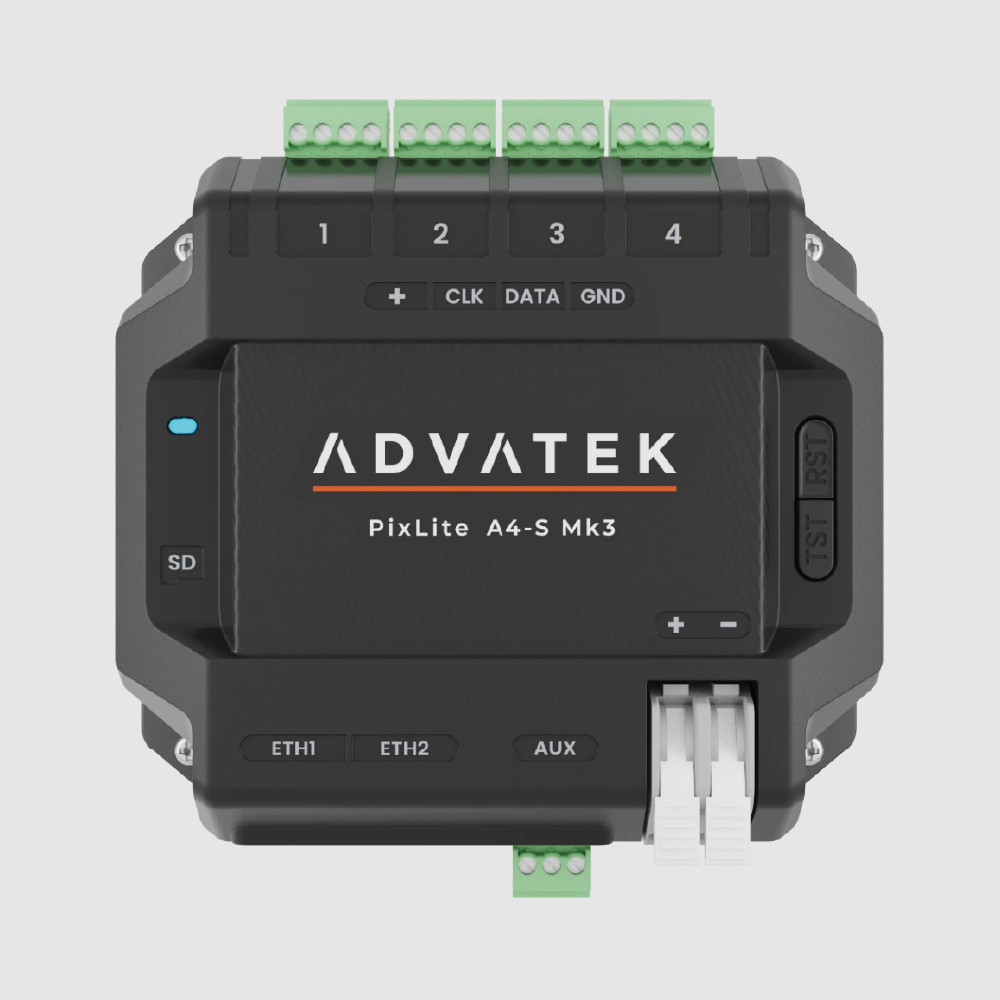

Advatek - PixLite A4-S Mk3 - 4 Output Pixel Controller

Advatek - PixLite A4-S Mk3 - 4 Output Pixel Controller

€585,00 EUR
€585,00 EUR €585,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

The perfect choice when you need high output capacity in the same area, the PixLite® A4-S Mk3 pixel controller drives up to 4,080 RGB pixels and has four outputs for four runs of pixels.

The device also supports daisy-chaining devices, has smart electronic fusing and powered pixel outputs.

  • 24 universes of Art-Net or sACN
  • Four powered pixel outputs
  • Over 90+ pixel protocols supported
  • microSD card slot for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3 or any web browser
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

Technical Details

  • Ethernet Ports - 2 x 10/200/1000 Mbit/s
  • microSD Card Slot
  • Auxiliaty Port - 1x RS485 Input/Output
  • Pixel Outputs - 4 x Powered
  • Dimensions - 126.5 x 119 x 42mm
  • Weight - 0.3kg
  • Enclosure Material - Aluminium + ABS
  • Mounting Options - Wall & Din-Rail Mountable
  • Input Power - 5V - 24V DC
  • Per Output Current Limit - 7A
  • Total Current Limit - 28A
  • Ambient Operating Temperature - -20°C to +70°C
  • Country of Origin - Australia

Documentation

View full details

Pair With our Digital LED

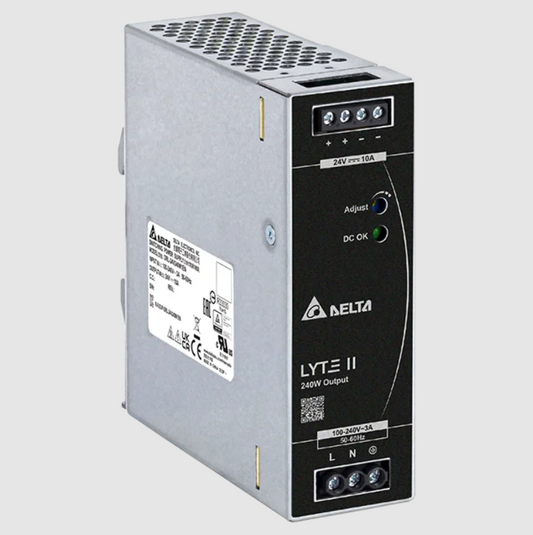

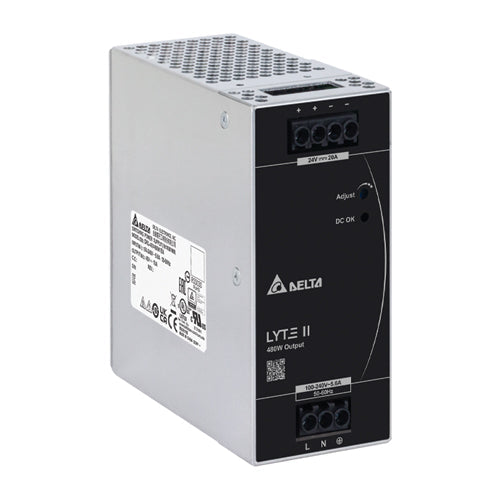

And don't forget to power it all!
