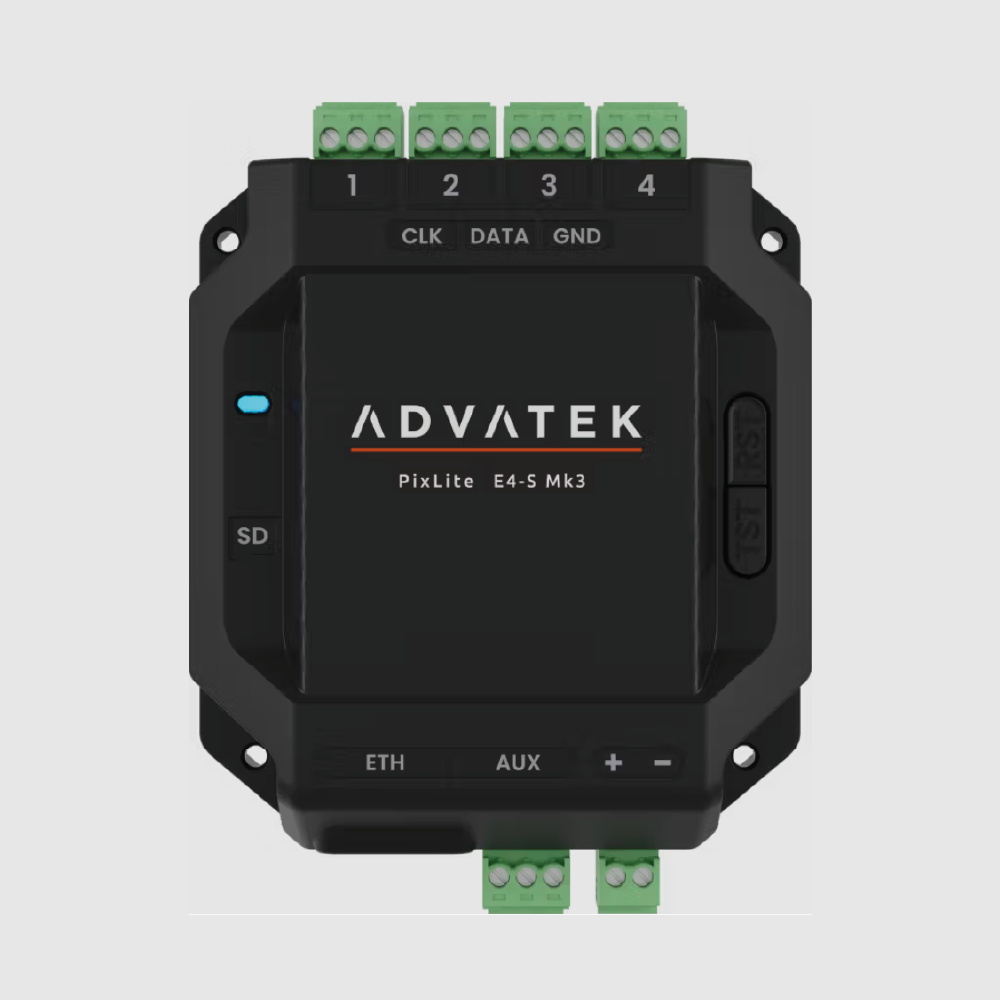

Advatek - PixLite E4-S Mk3 - 4 Output Pixel Controller

Advatek - PixLite E4-S Mk3 - 4 Output Pixel Controller

€399,00 EUR
€399,00 EUR €399,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

Ideal for impactful environments like smaller-scale theme parks, stages or architectural installations, the PixLite® E4-S Mk3 LED pixel controller is perfect for situations where you need to use a few pixel runs in the same area.

For larger-scale installations, check out the T8-S Mk3.


  • 24 universes of Art-Net or sACN
  • Four non-powered pixel outputs
  • Over 90+ pixel protocols supported
  • microSD card slot for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3 or any web browser
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

Technical Details

  • Ethernet Ports - 1 x 10/200/1000 Mbit/s
  • microSD Card Slot
  • Auxiliaty Port - 1x RS485 Input/Output
  • Pixel Outputs - 4 x Non-Powered
  • Dimensions - 115 x 86 x 33mm
  • Weight - 0.1kg
  • Enclosure Material - ABS
  • Mounting Options - Wall & Din-Rail Mountable
  • Input Power - 5V - 24V DC
  • Maximum Power Consumption - 2.5W
  • Ambient Operating Temperature - -20°C to +70°C
  • Country of Origin - Australia
