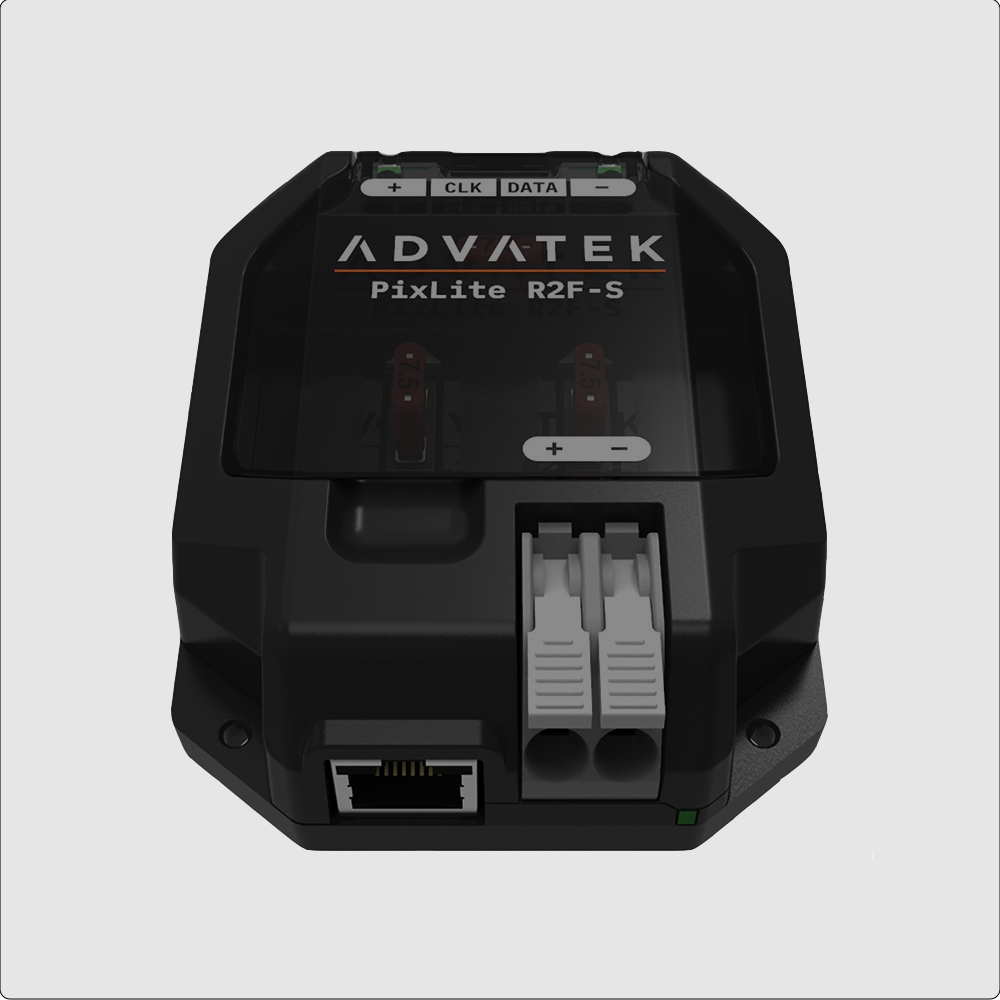

Advatek - PixLite R2F-S Receiver - 2 Outputs

Advatek - PixLite R2F-S Receiver - 2 Outputs

€135,00 EUR
€135,00 EUR €135,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

Meet the T8-S Mk3's other half

Ensure larger installations don't lose their impact with the PixLite® R2F-S pixel control receiver. When paired with either the T8-S or T16X-S Mk3 transmitter, the receiver can drive two runs of pixels.

  • Industrial grade fault protection
  • Receives data up to 300+m from PixLite T8-S
  • Din-rail and wall mountable
  • Sleek design with flip lid access to all fuses
  • Compact form factor
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

Technical Details

  • Fused Pixel Outputs - 2
  • Data Inputs (from Transmitter) - 1
  • Dimensions 95x78x33mm
  • Weight 0.2kg
  • Enclosure material - ABS
  • Mounting Options - Wall & Din-Rail Mountable
  • Input Power - 5V 24V DC
  • Per Output Fuse Rating - 7.5A
  • Maximum Current Per Output - 6A
  • Total Current Limit - 12A
  • Ambient Operating Temperature - -20°C to 55°C
  • Country of Origin - Australia
