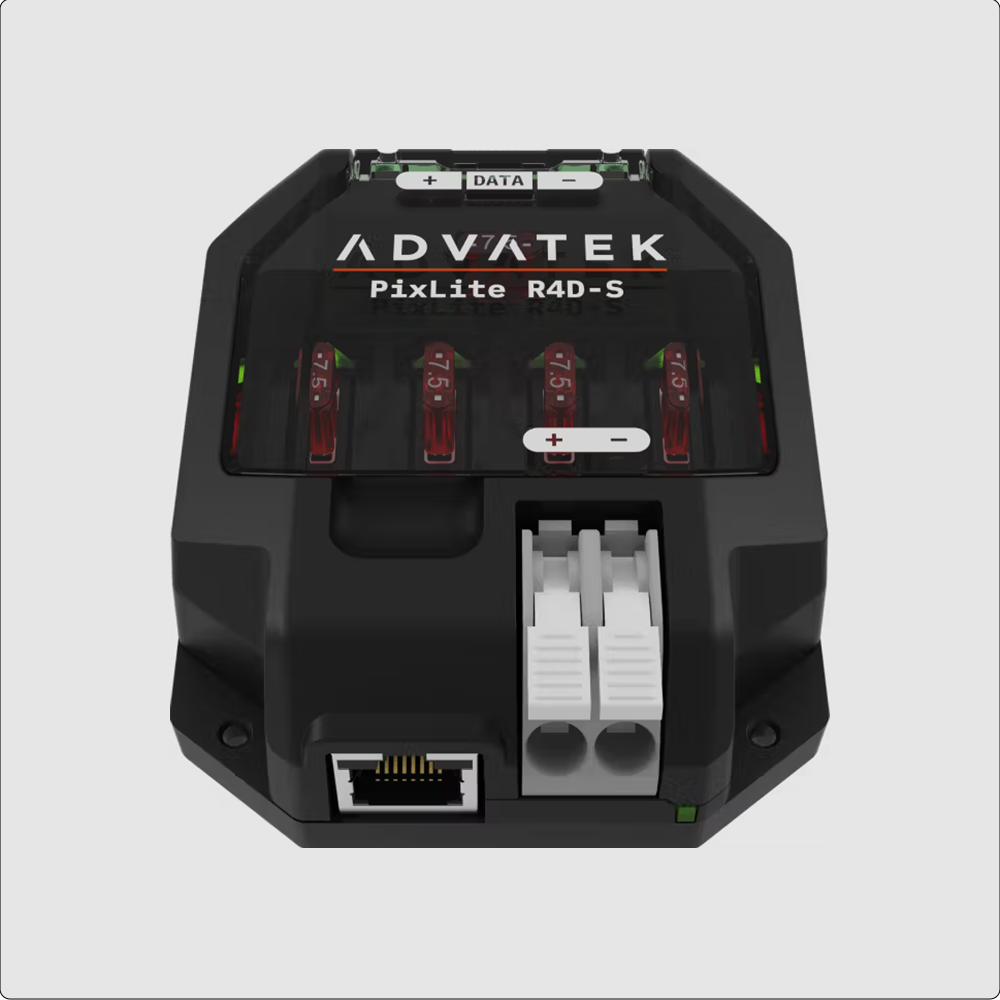

Advatek - PixLite R4D-S Receiver - 4 Outputs

Advatek - PixLite R4D-S Receiver - 4 Outputs

Regular price €159,00 EUR
Regular price €159,00 EUR Sale price €159,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

Quantity

R4D-S and T8-S Mk3 — the perfect match

When you need to go big, go R4D-S. Designed to bring sizable projects to life, this pixel control receiver works together with the T8-S Mk3 transmitter to drive up to four runs of pixels for larger-scale installations.

  • Industrial grade fault protection
  • Receives data up to 300+m from PixLite T8-S
  • Din-rail and wall mountable
  • Sleek design with flip lid access to all fuses
  • Compact form
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability



Technical Details

  • Fused Pixel Outputs - 4
  • Data Inputs (from Transmitter) - 1
  • Dimensions 95x78x33mm
  • Weight 0.2kg
  • Enclosure material - ABS
  • Mounting Options - Wall & Din-Rail Mountable
  • Input Power - 5V 24V DC
  • Per Output Fuse Rating - 7.5A
  • Maximum Current Per Output - 6A
  • Total Current Limit - 24A
  • Ambient Operating Temperature - -20°C to 55°C
  • Country of Origin - Australia
