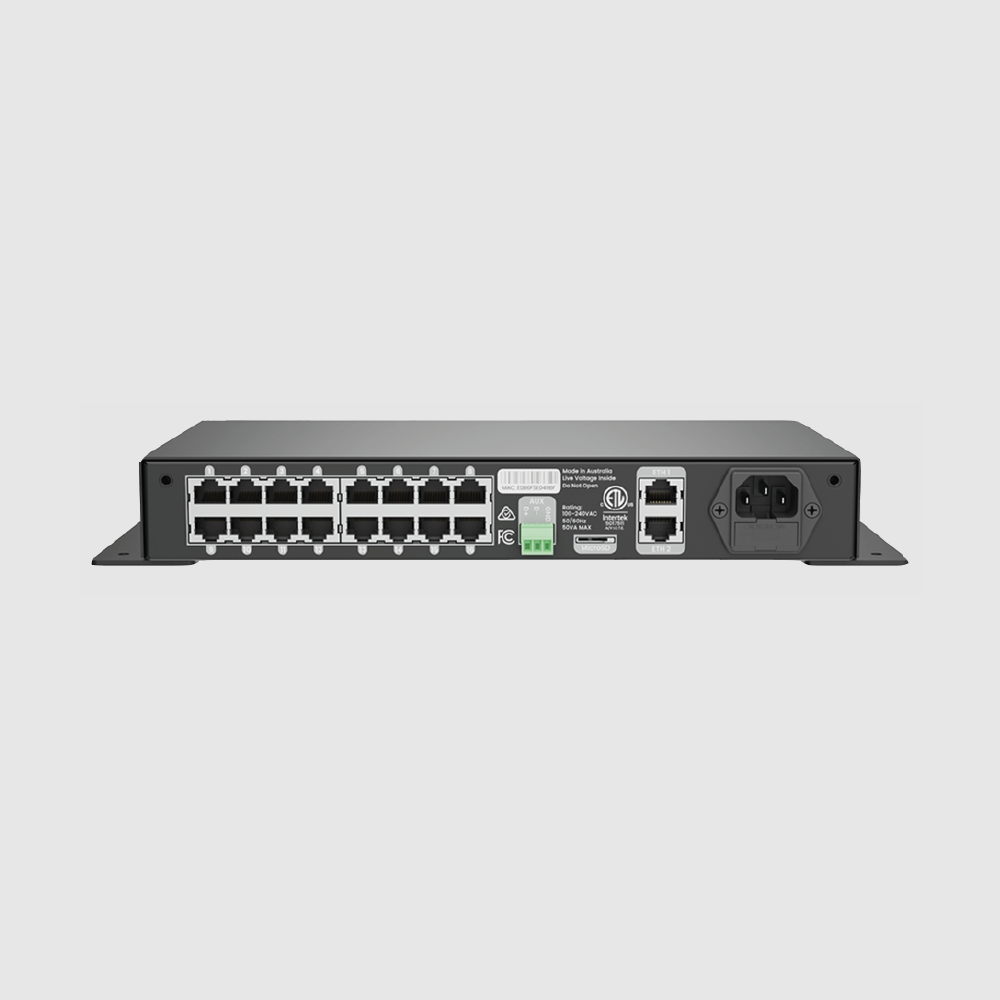

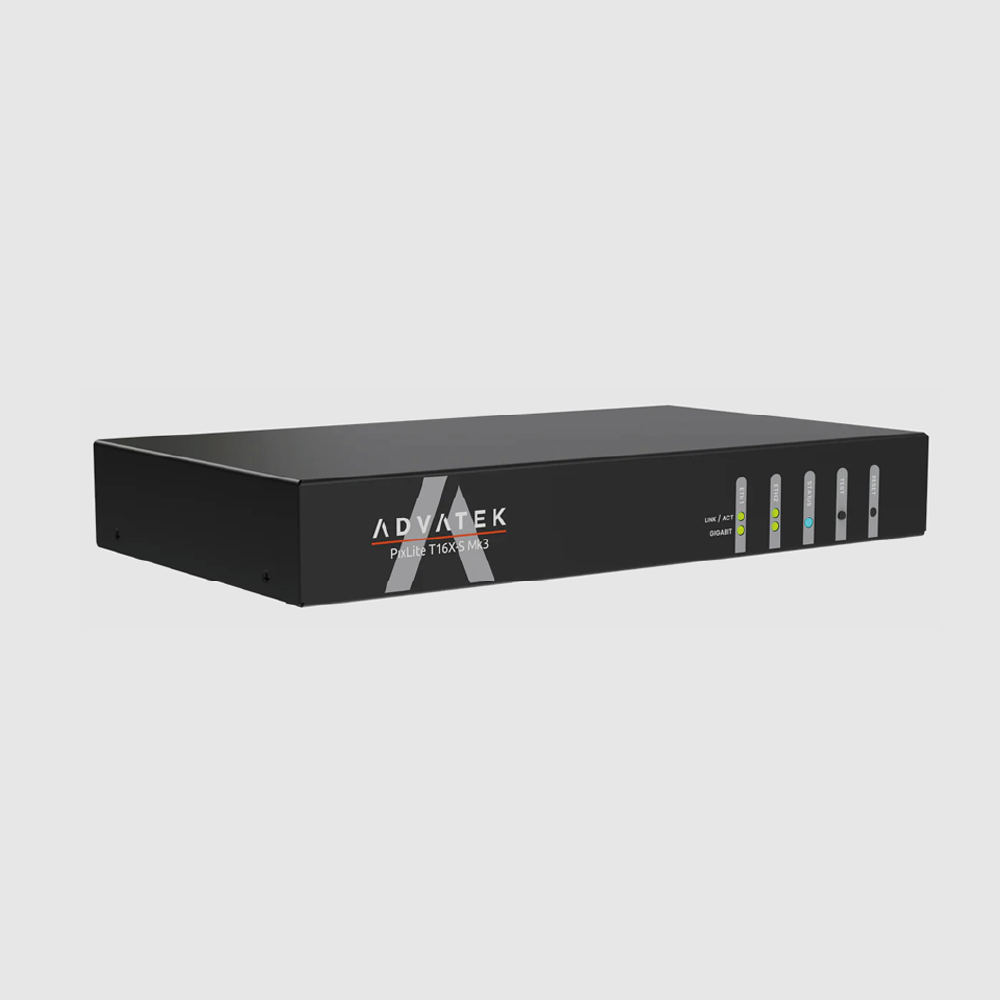

Advatek - PixLite T16X-S Mk3 - Long Range Pixel Controller

Advatek - PixLite T16X-S Mk3 - Long Range Pixel Controller

€1.125,00 EUR
€1.125,00 EUR €1.125,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

  • 96 universes of Art-Net or sACN
  • Connect up to 16 R1 or R2 receivers
  • over 90+ pixel protocols supported
  • microSD for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

Technical Details

  • Ethernet Ports - 2 x 10/200/1000 Mbit/s
  • microSD Card Slot
  • Auxiliaty Port - 1x RS485 Input/Output
  • Pixel Outputs(To Receivers) - 16 RJ45
  • Dimensions - 282 x 42 x 169mm
  • Weight - 1.32kg
  • Enclosure Material - Aluminium
  • Mounting Options - Direct Panel, Wall & Rack Mountable
  • Input Power - 100V-240V AC
  • AC Fuse - 1AM205
  • Ambient Operating Temperature - -10°C to +60°C
  • Country of Origin - Australia
