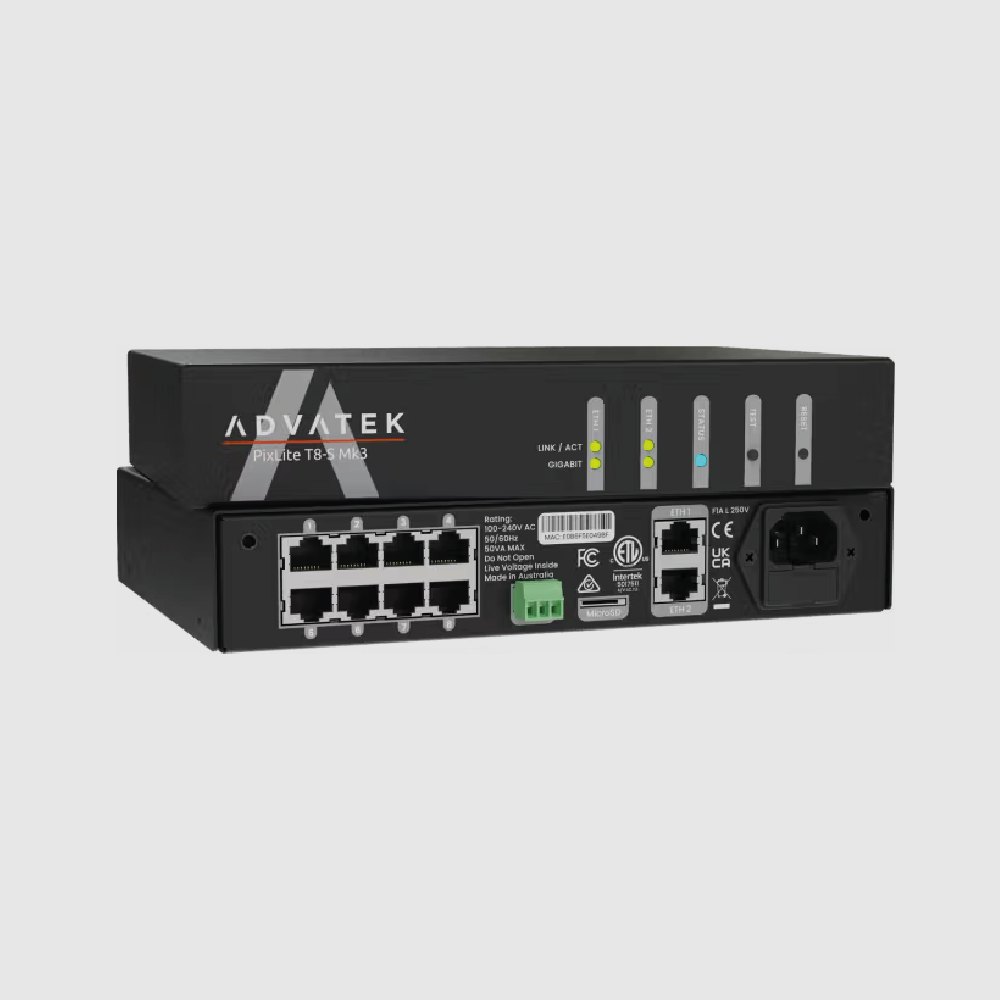

Advatek - PixLite T8-S Mk3 - Long Range Pixel Controller

Advatek - PixLite T8-S Mk3 - Long Range Pixel Controller

€1.035,00 EUR
€1.035,00 EUR €1.035,00 EUR
Sale Sold out
Shipping calculated at checkout.

Price Excluding VAT

Unbeatable power doesn’t have to come at a price. The PixLite® T8-S Mk3 long range pixel controller is ideal for controlling pixels over a large area. Eight outputs can connect to eight receivers, driving up to 16,320 RGB pixels, and receivers can be placed up to 300 meters from the transmitter.

  • 96 universes of Art-Net or sACN
  • Connect up to 8 R2 or R4 receivers
  • Over 90+ pixel protocols supported
  • MicroSD for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability


Technical Details

  • Ethernet Ports - 2 x 10/100/1000 Mbit/s
  • microSD Card Slot
  • Auxiliary Port - 1x RS485 Input/Output
  • Data Outputs (to receivers) - 8 x RJ45
  • Dimensions - 169 x 221 x 42mm
  • Weight - 1.1kg
  • Enclosure Material - Aluminum
  • Mounting Options - Direct Panel, Wall & Tack Mountable
  • Input Power - 100V-240V AC
  • AC Fuse - 1A M205
  • Ambient Operating Temperature - -10°C to +60°C
  • Country of Origin - Australia

Documentation
