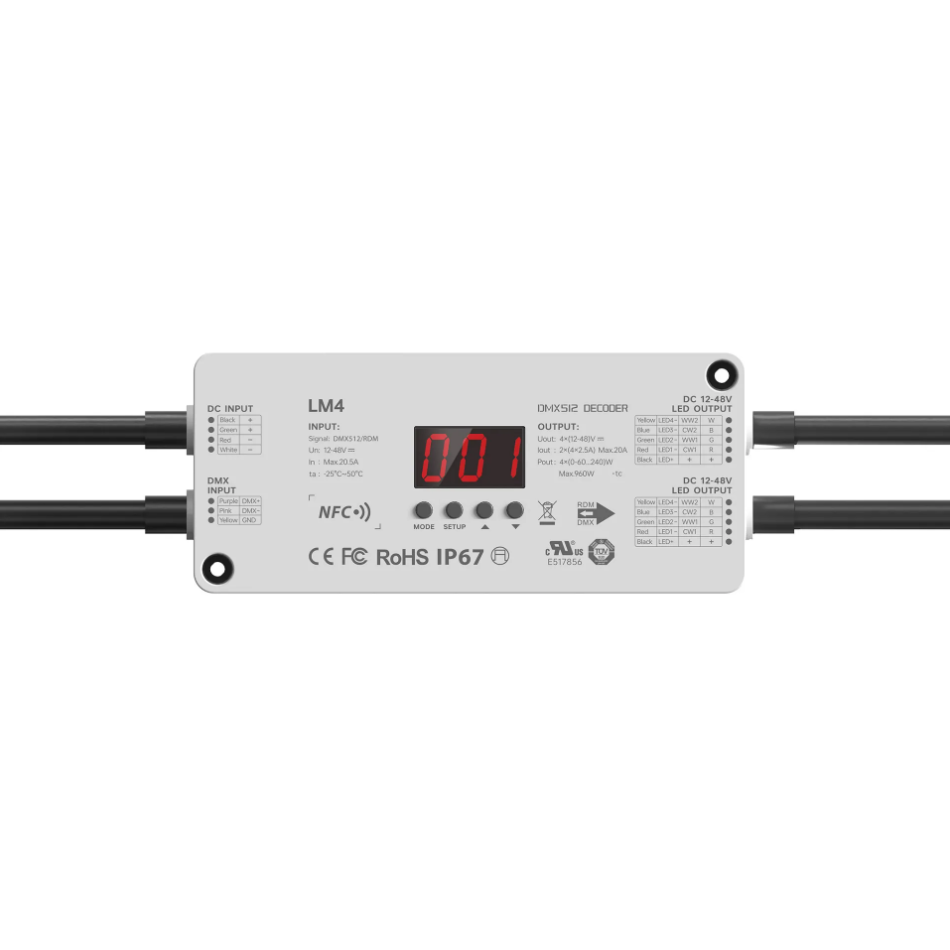

Ltech - LM4 - IP67 4CH DMX Decoder

Ltech - LM4 - IP67 4CH DMX Decoder

Regular price €74,20 EUR
Regular price €74,20 EUR Sale price €74,20 EUR
Sale Sold out

Price Excluding VAT

Quantity

The LM4 is a high-performance constant-voltage LED controller supporting standard DMX and RDM protocols, with four output channels delivering up to 20A and a total power of 960W for stable, demanding lighting applications.

It offers smooth dimming, tunable white, and full RGB/RGBW control, operating in both DMX decoder and master modes-the decoder mode lets you adjust DMX address, resolution, PWM frequency, and fade settings, while the master mode includes 33 built-in effects with adjustable speed and brightness.

Configuration is available via the NFC Lighting app, RDM-WIFI app, or onboard buttons.

With an IP67 waterproof rating, the LM4 is reliable for both indoor and outdoor use, even in humid conditions.


Operating Voltage12-48V DC
Channels4
Current load/channel2.5A
Curent load max20A
ControlDMX/RDM
Weight670g
DimensionsL164xW70xH36mm
Package SizeL230xW95xH47mm
Working Temperature-20°C to 50°C
