Lightsign - RGBW Digital LED Ribbon - 10M Roll
Lightsign - RGBW Digital LED Ribbon - 10M Roll
Price Excluding VAT
Couldn't load pickup availability

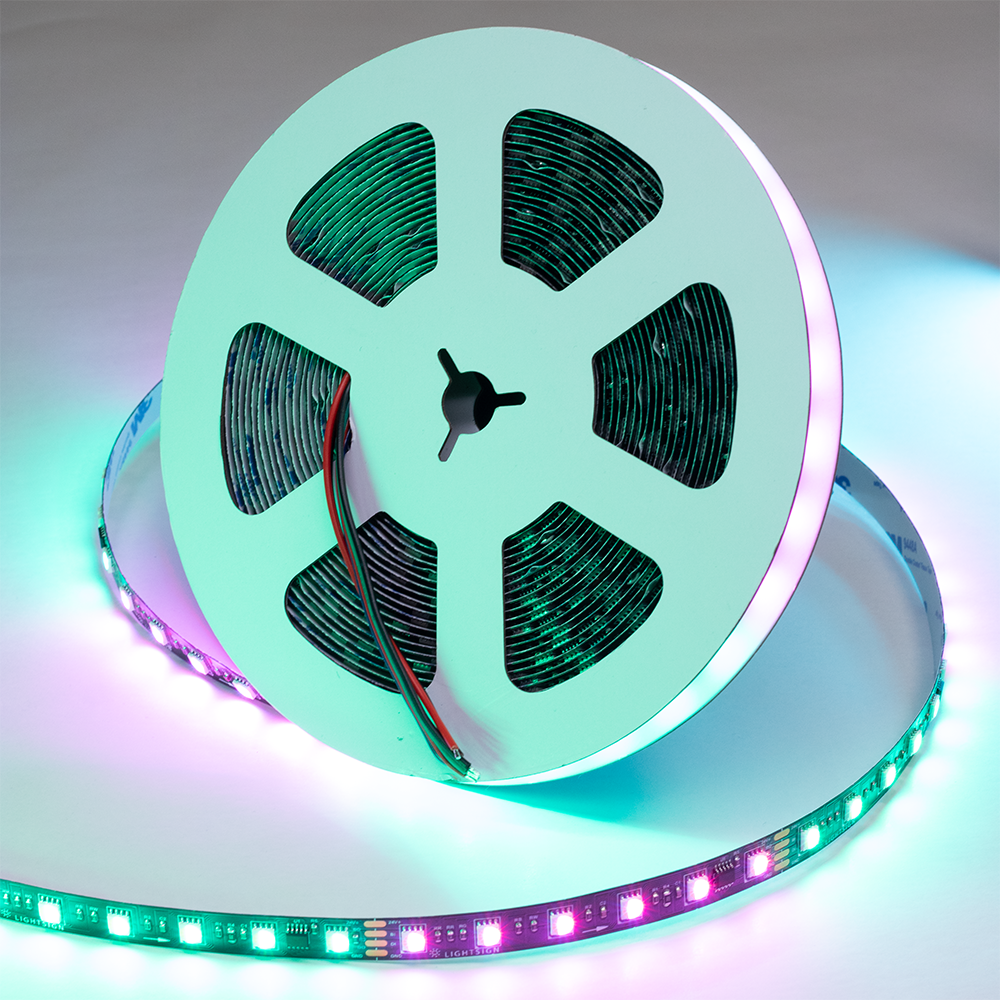

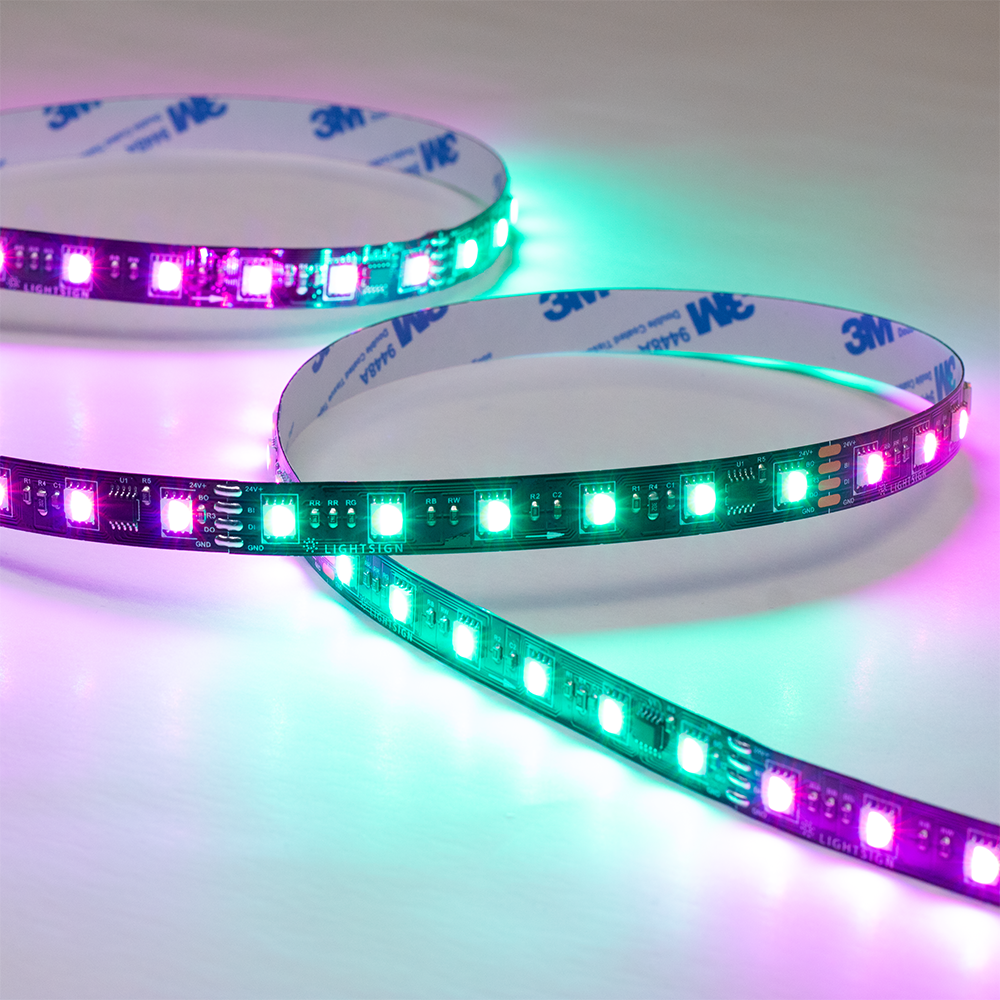

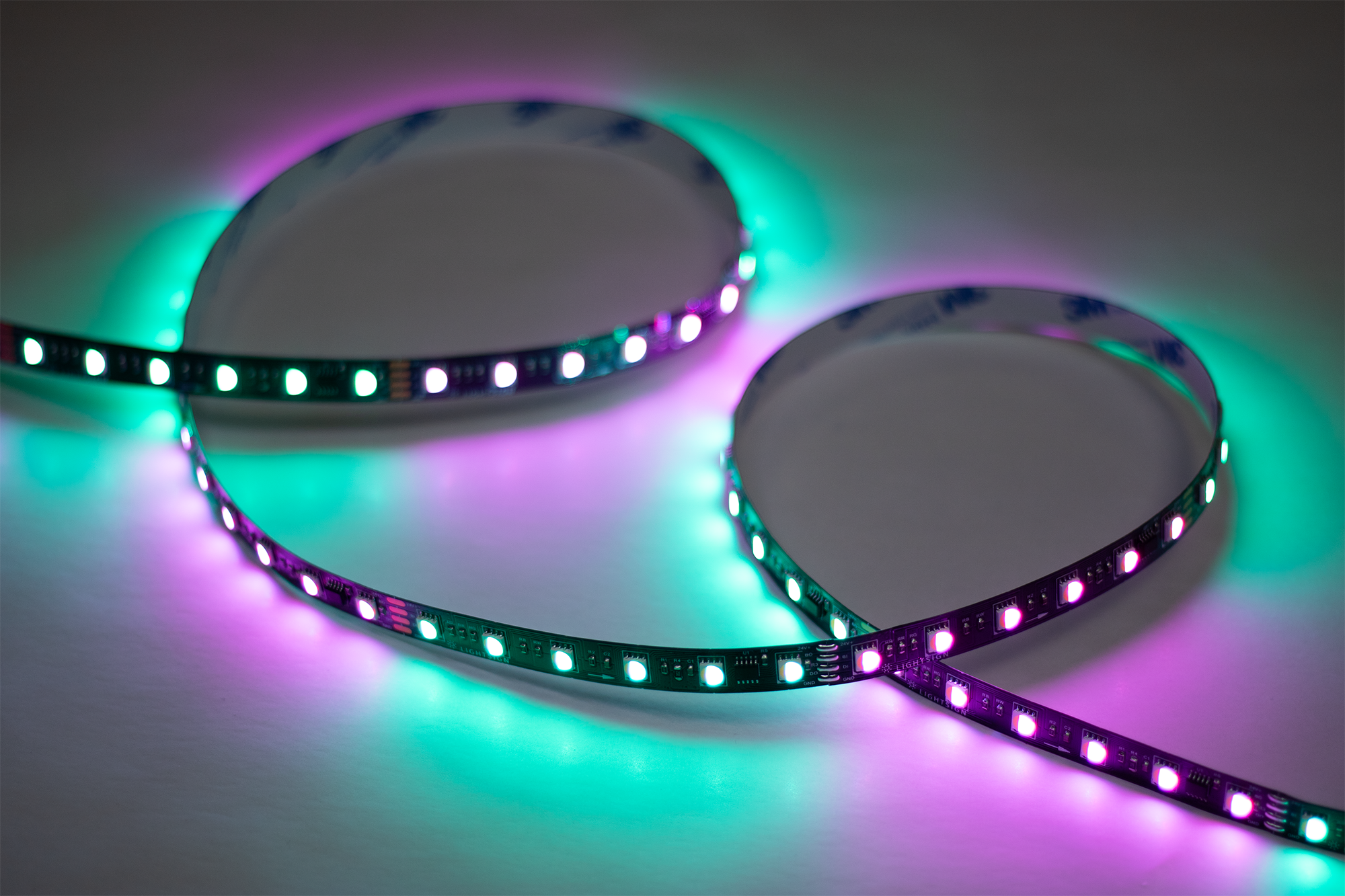

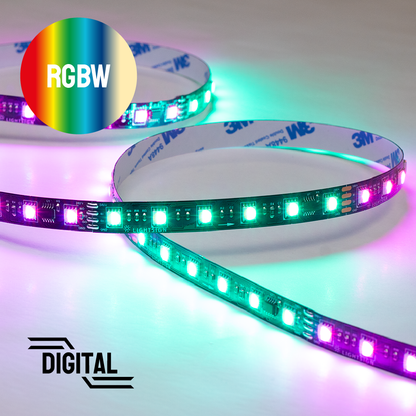

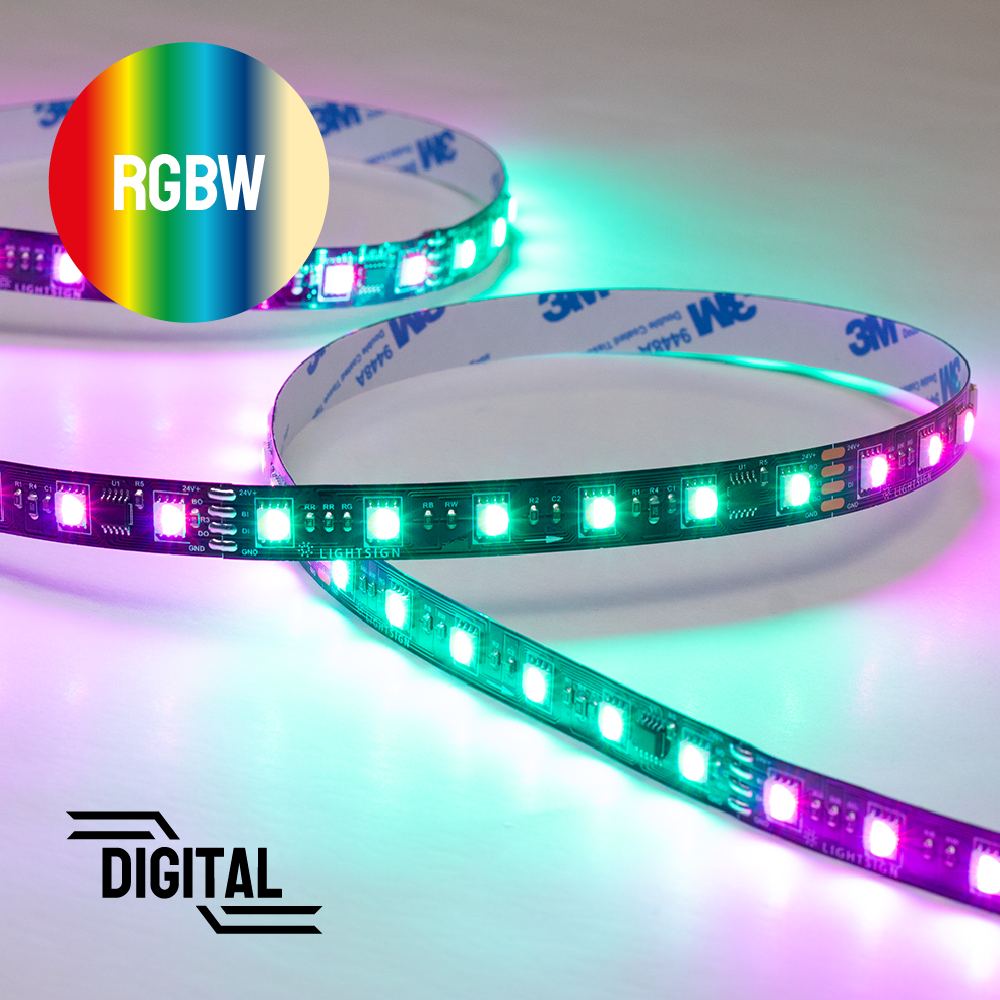

UCS7604 Digital RGBW LED Strip
This Digital RGBW LED strip is engineered for lighting pros who need more than just "colourful".
With the addition of the UCS7604 IC the standout feature of this strip is its addressable segments. Every 100mm segment functions as an individual pixel, allowing you to create fluid chasing effects and sophisticated gradients across the length of the strip in conjunction with a suitble controller.
This strip also features redundant data lines. Should a data line be damaged on the strip or between strips the UCS7604 IC will automatically detect the fault and switch to the functioning data line.
Finally by combining a dedicated white diode into the RGB led chip, this ribbon delivers brilliant, saturated colours and a clean white light from a single source.
| Voltage | 24V DC |
| Watts Per Meter | 12W |
| Roll Length | 10 Meters |
| Cutting Resolution | 100mm |
| IC | UCS7604 |
| Colour | RGBW |
| White Colour Options | 2700K, 4000K or 6500K |
| PCB Width | 12mm |
| PCB Colour | Black |
| IP Rating | IP20 |
| LEDs Per Meter | 60 |
| Adhesive | 3M Tape |
| Warranty | 5 Years |
