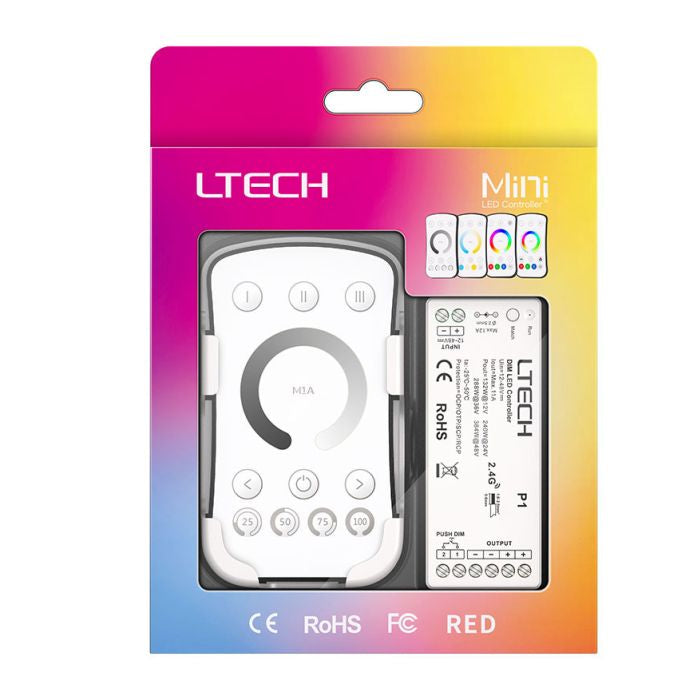

LTECH - M1A+P1 - Single Channel Handheld Dimmer Set

M1A+P1 Dimming CV CONTROLLERSET

Product color: white
Dimming type: DIM
Wireless type: RF 2.4GHz
Operating voltage: 3Vdc (button
battery CR2032×1)
Standby current: <2uA
Remote control distance: 30
meters (no obstacles)
Operating temperature: -30℃~55
℃"

Model: P1

Input signal: RF2.4GHz
Input voltage: 12-48Vdc
Output voltage: 12-48Vdc
Load current: Max.11A
Load power: 132W@12V,
240W@24V, 288W@36V,
384W@48V
Protection: short circuit, over
temperature, over current
protection, anti-reverse connection
protection
Operating temperature: -25°C
~50°C
1 channel constant voltage output,
can control dimming lamps
Can be used with RF 2.4GHz Mini
series remote control

Size CONTROLLER：
104×58×9mm
CONTROLLER：
91×37×21mm
package size：
155×137×27mm
G.W.：120g
