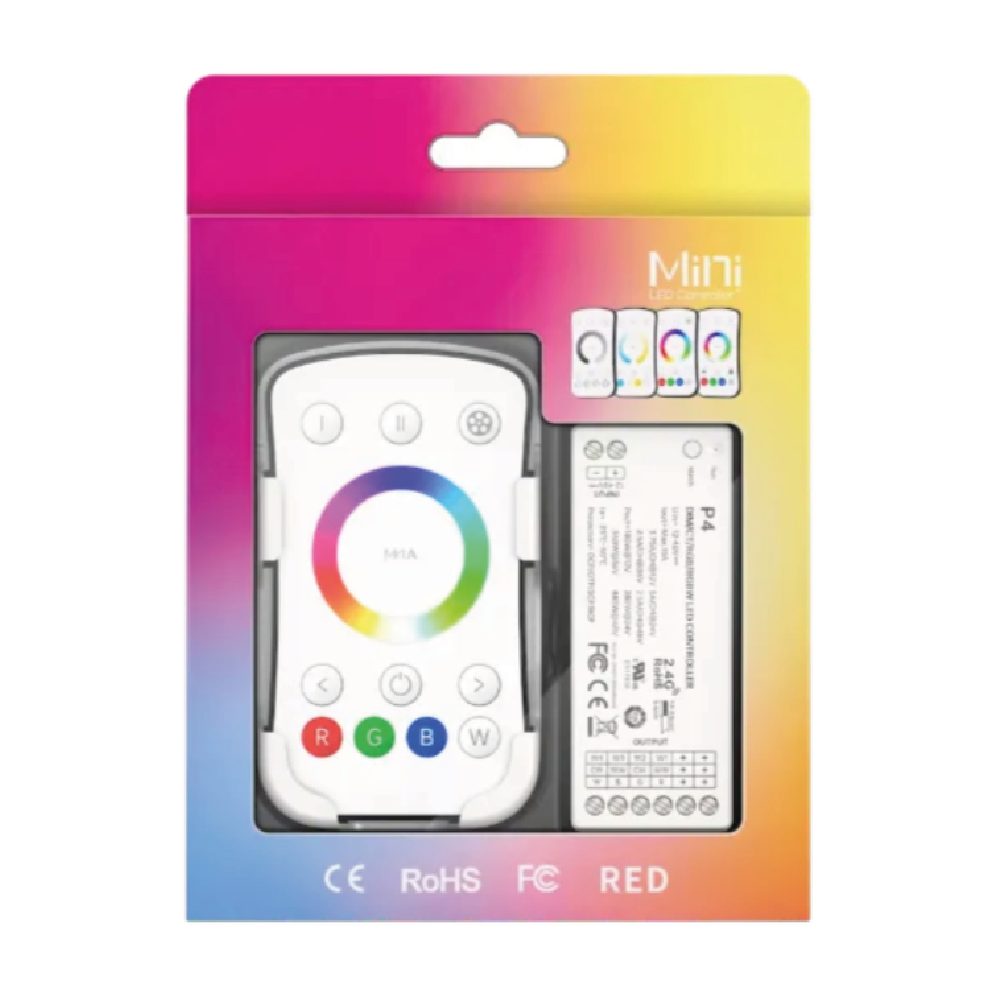

LTECH - M4A+P4 - RGBW Handheld Controller Set

M4A+P4 RGBW CV CONTROLLER SET

Specification:

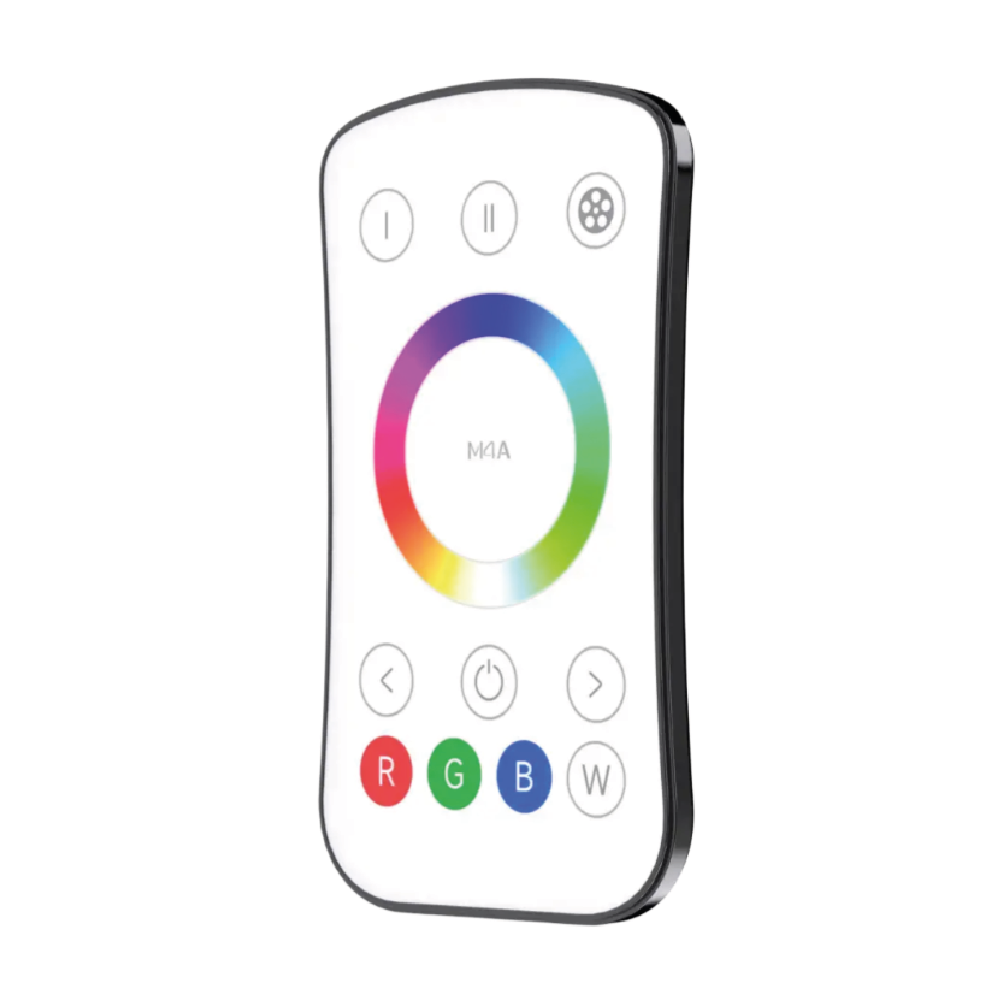

Model: M4A
Product color: white
Dimming type: RGBW
Wireless type: RF 2.4GHz
Operating voltage: 3Vdc (button
battery CR2032×1)
Standby current: <2uA
Remote control distance: 30
meters (no obstacles)
Operating temperature: -30℃~55
℃

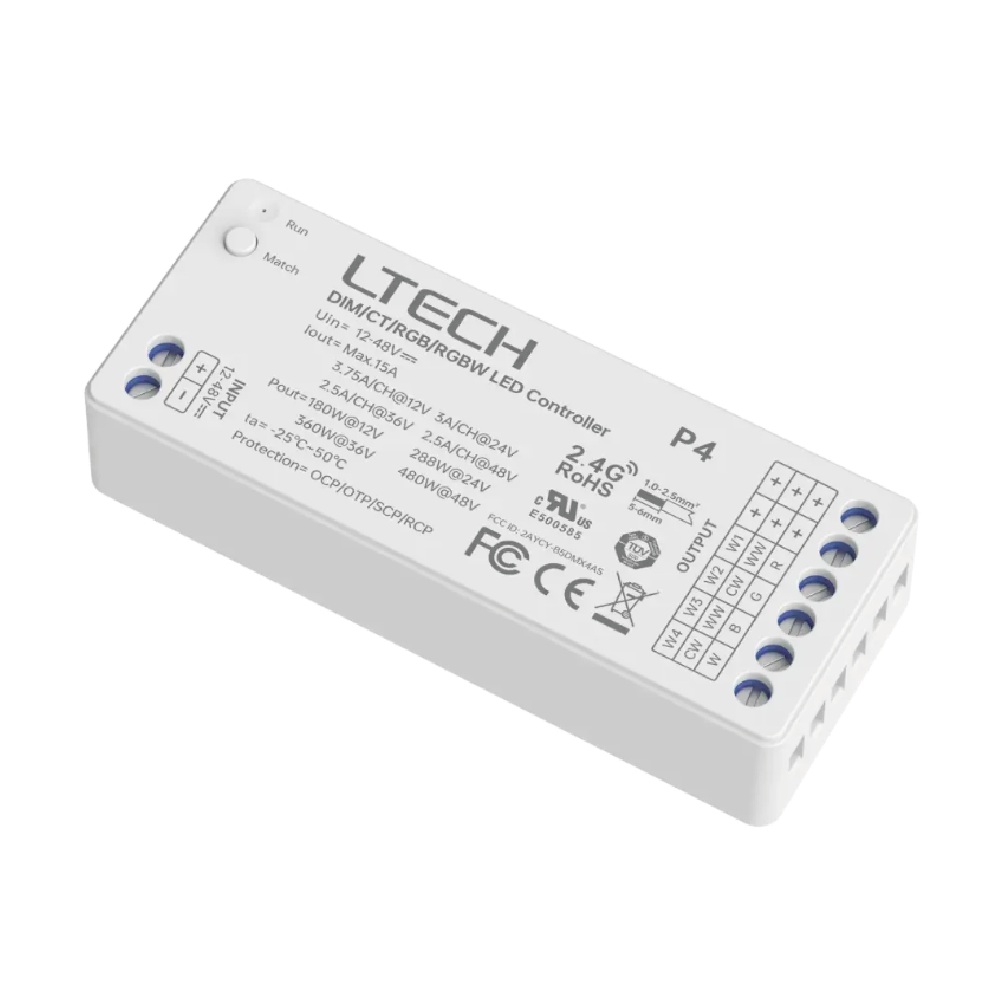

Model: P4
nput signal: RF2.4GHz
Input voltage: 12-48Vdc Output voltage: 12-48Vdc
Load current: Max.15A
Load power: 180W@12V,
280W@24V, 360W@36V,
480W@48V
Protection: short circuit, over
temperature, over current
protection, anti-reverse connection
protection
(Note: when the output voltage
exceeds 24V, short circuit
protection is not supported)
Operating temperature: -25°C
~50°C
4-channel constant voltage output,
can control dimming, color
temperature, RGB, RGBW lamps
Can be used with RF 2.4GHz Mini
series remote control

size:
CONTROLLER：
104×58×9mm
CONTROLLER：
91×37×21mm
package size：
155×137×27mm
G.W.：120g
